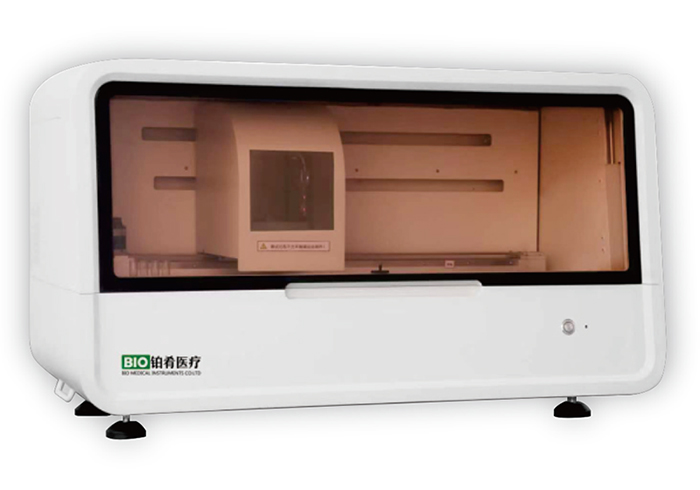

1、Brief introduction
It is suitable for various immunoblotting methods and egg blotting test kits for immuno diseases, HIV diagnosis, Helicobacter pylori, Helicobacter pylori infection, diabetes antibodies, allergens, etc. The instrument covers a wide area, with accurate detection accuracy and easy operation, greatly improving the efficiency of related experiments. This machine realizes the automation of all processes including sample addition, reagent addition, incubation, temperature control, cleaning, drying, and interpretation.

2、Characteristics
good-looking
High precision
High flux
Fast speed

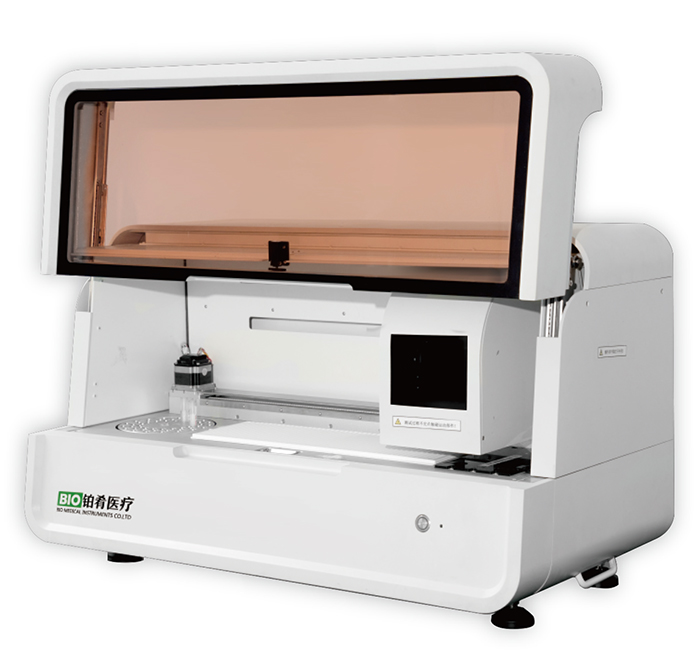

3、Structural principles

Liquid addition module
Quantitative addition and absorption of reaction solutions for each step: during the washing process, 10 channels are used for liquid addition and 4 channels for waste liquid absorption. The PTFE pipeline is corrosion-resistant, easy to clean, and avoids cross contamination.
High quality peristaltic and plunger pumps with long service life and automatic volume distribution? Calibration to ensure accurate detection results.

Incubation module
Each operation can process up to 50 samples.
Collect a one-time incubation plate to ensure experimental safety.

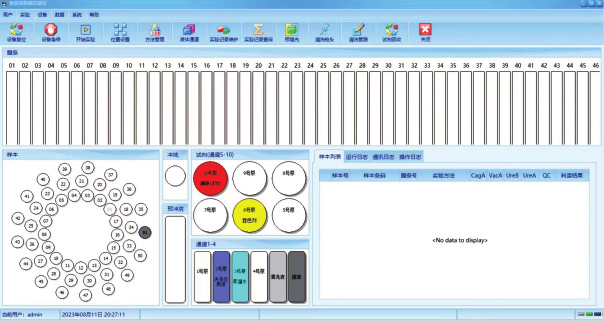

The detection film strip is fixed in the board slot for easy software scanning and interpretation.
The up and down swing function ensures that the membrane strip is fully immersed in the liquid and reacts well.

Drying module
Loop drying of the test sample left and right
Constant temperature and uniform speed ensure uniform heating of the film strip

Interpretation module
Maintaining grayscale value calibration for reliable results
The photo light source can be customized, and the imaging results are accurate
The photo resolution is 12 million pixels, with clear imaging

4、Technical parameters

Sample size	50T	Specification of fuse	3S5A，5*20mm
Sampling range	10uL-200uL adjustable	Foot length	Length x width x Height: 920mmx495mmx550mm
Reagent channel	10	weight	80kg
Temperature control	25 °~50 ° (adjustable)+1.5 ℃	Raise an alarm	Alarm for reagent addition and extraction, waste liquid overflow, and end of operation
Incubation time	0-24 hours (h) in increments of 1 minute	Save time	Three different items (same brand reagent kit) can be operated on the same disk
Drying time	7 minutes	Cost savings	After the reagent is added, reagent reflux can be achieved
Interpretation time	1-4 minutes (based on sample size)	Interpretation module	CCD high-speed imaging, mobile scanning, automatic recognition of samples, results automatic transmission to LIS system
Instrument adapter power supply	AC220±22V, Frequency 50 ± 1HZ
Instrument rated power	450VA
